Small reloadable rifle cartridges?
- Thread starter conditionzero
- Start date

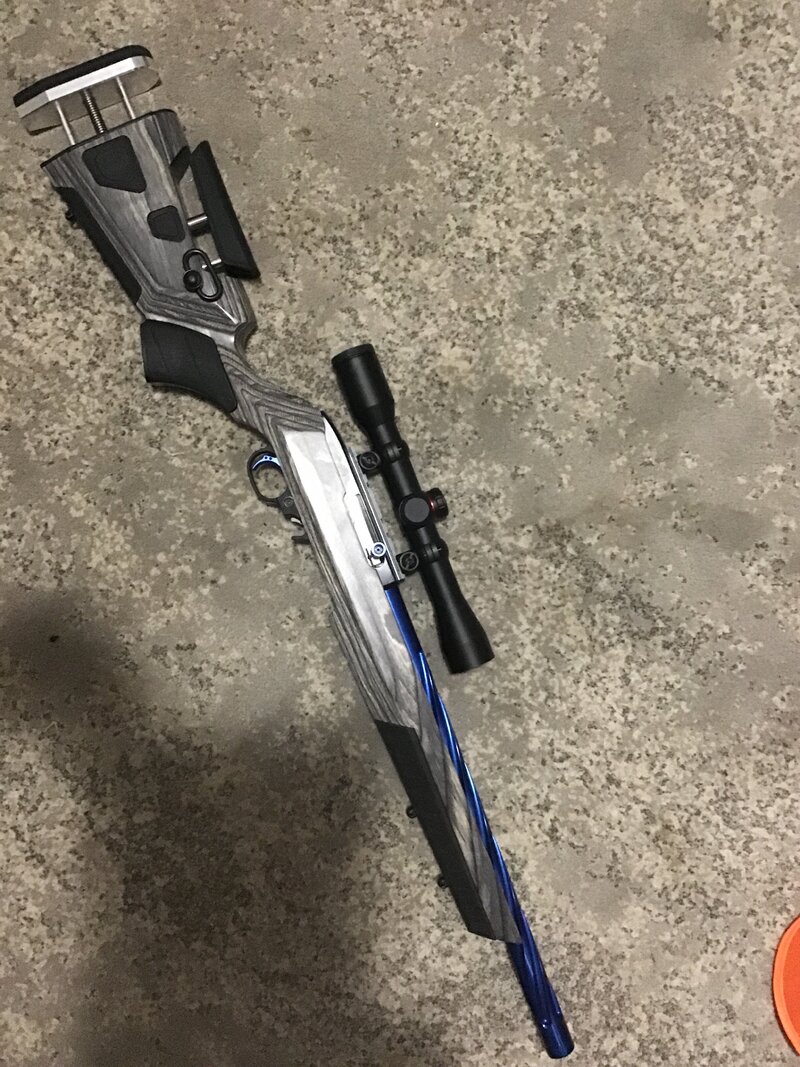

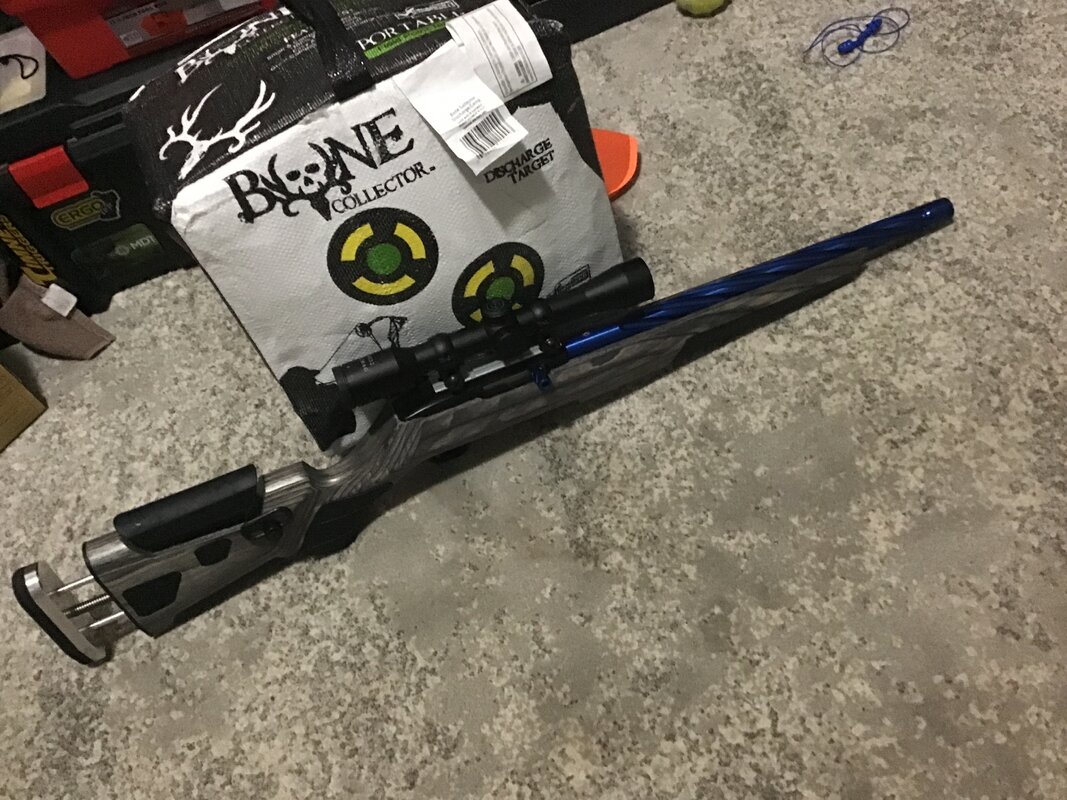

Little is kind of an understatement. Her new nickname is Dot.
I’m wracking my brain trying to suss out how to get a center fire in the form factor of the Rascal. The 5.7 does seem like the best candidate simply for the bolt face diameter. What I wouldn’t give to have my old shop right now.
Here's some info from another site, this guy is very into the low power loads.
HERE'S THE BLUE DOT POST.....READ ON
Now to address this topic...on 223 gopher loads...with Blue Dot..
This info ought to keep you busy, but you need to load one at a time if you are loading the slower velocity loads, so that you do not double charge your load...all of these loads have proven safe in my 223s,
Blue Dot Range Report: 223 Caliber ( Full )
Bullet Weights Tested:
1. 35 grain Hornady V Max
2. 40 grain Hornady Vmax
3. 45 grain Sierra SP
4. 50 grain Sierra SMP
5. 52 grain Sierra Boat Tail Match
6. 55 grain Winchester FMJ
Rifle Used: Ruger 77 Mk 2, VT 26 inch Barrel, Stainless Steel First yr Model
Case: Lake City Surplus, previously fired
Primer: Remington 6 ½
Powder: Blue Dot
Charge Weight Tested: 4 grains to 14 grains.
Weather: Sunny, NO clouds, 80 degrees, NO wind,
Altitude: 2000 ft
Humidity: Very Low
Field Results:
35 grain Hornady V Max:
4 grs: 1284 fps
5 grs: 1488 fps
6 grs: 1862 fps
7 grs: 2163 fps
8 grs: 2392 fps
9 grs: 2636 fps
10 grs: 2722 fps
11 grs: 3076 fps
12 grs: 3205 fps
13 grs: NO Reading
14 grs: 3518 fps
15 grs: NO Reading, Too hot, Extractor Marks, Scrapped Case
16 grs: NO Reading, Too Hot Blew Primer
Hornady 40 grain Vmax:
4 grs: 1161 fps
5 grs: 1538 fps
6 grs: 1798 fps
7 grs: 2148 fps
8 grs: 2243 fps
9 grs: 2539 fps
10 grs: 2771 fps
11 grs: 2956 fps
12 grs: 3013 fps
13 grs: 3218 fps
14 grs: 3375 fps
Sierra 45 grain SP
4 grs: 1239 fps
5 grs: 1447 fps
6 grs: 1688 fps
7 grs: 1880 fps
8 grs: 2118 fps
9 grs: 2363 fps
10 grs: 2553 fps
11 grs: 2811 fps
12 grs: 2875 fps
13 grs: 3008 fps
14 grs: 3164 fps
Sierra 50 grains SMP
4 grs: 1064 fps
5 grs: 1345 fps
6 grs: 1624 fps
7 grs: 1788 fps
8 grs: 2033 fps
9 grs: 2257 fps
10 grs: 2466 fps
11 grs: 2655 fps
12 grs: 2779 fps
13 grs: 2882 fps
14 grs: 3038 fps
Sierra 52 grain Boattail Hollow Point Match
4 grs: 1061 fps
5grs: 1460 fps
6 grs: 1632 fps
7 grs: 1916 fps
8 grs: 2142 fps
9 grs: 2225 fps
10 gr: NO Reading
11 grs: 2673 fps
12 grs: 2782 fps
13 grs: 2879 fps
14 grs: 3012 fps
Winchester 55 grain FMJ
4 grs: 896 fps
5 grs: 1264 fps
6 grs: 1568 fps
7 grs: 1825 fps
8 grs: 1994 fps
9 grs: 2201 fps
10 grs: 2328 fps
11 grs: 2453 fps
12 grs: 2677 fps
13 grs: 2821 fps
14 grs: 2915 fps
Notes:
1. IN the evaluation of the 223, I came further to the conclusion of the versatility of the 223 in the use of training new shooters, and for a very versatile varmint caliber.
2. Essentially the 223 can be loaded to the specs of a 22 Long rifle, a 218 Bee, a 221 Fireball, a 222 Remington, a 22 Hornet, and a 22 Win Mag., while allowing the shooter to be able to pick the type of bullet that he prefers.
3. Bullets were limited to use of 35 grains to 55 grains. Heavier bullets will not serve any purpose unless a 223 is to be used for deer hunting. I do not believe that their would be a significant difference in the use of a 55 grain bullet vs a 60 grain bullet.
4. The recoil on the lighter loads using 4 to 6 grains of powder had minimal recoil if any at all. These would be ideal for young shooters being trained.
5. Noise level on the lighter loads ( 4 to 6 grains) were on par with a rim fire. An increase in noise level was very noticeable above 7 grains, but still very acceptable. ( No sounding like a rim fire any more)
Noted Observations:
1. It was noted but not considered part of the testing, with a tree used as a back stop for some of the testing, that all bullets ( 45 to 55 grains)penetrated thru the tree at a distance of 20 yds.
2. The diameter of the tree was measured at 5 inches.
3. The 40 grain Vmax loads failed to penetrate the tree at loads above 10 grs, above 2771 fps. However at 10 grains and less, the bullets penetrated thru the tree and did a large amount of damage ( like turning the wood into tooth picks) on the exit side of the tree. The penetration stopped at the 5 grain load.
Some of the Author’s Conclusions:
1. I learned some significant items beyond the versatility of the 223 with the bullets tested, but focusing on its use in the field, got some ideas.
2. A light rifle such as a Winchester Featherweight or Rugers Compact model with a 16.5 inch barrel or the Ultra Light with a 20 inch barrel would make a good combo with the use of Blue Dot.
3. Since the powder is burned cleanly in the first 10 to 12 inches of barrel, the shorter barrels are not handicappiing velocity in the lighter shorter rifles.
4. The penetration of the 40 grain Vmax into the tree did make me ponder the use of those plastic tip varmint rounds as potential loads for small deer for youth shooters. Just like my observations in the larger calibers, the plastic tipped bullet seem to do a lot more damage, at velocities under 2700 fps. The Vmax surprised me. This is a decision any shooter will have to test on his own and make their own decisions. I am just passing on that I saw potential merit in the application.
5. Although one has to weigh out the potential of Plastic Tipped Varmint bullets on bigger game like deer and antelope, some of these loads in real life use, utilizing Barnes’s X bullets in 22 caliber I can recommend. They make a 45 grain, 50 grain and 53 grain bullet. The way I saw much better penetration and more damage in wood, at the lower range velocities, 2200 to 2700 fps, this would make a good deer load in many parts of the USA, and recoil is minimal.
I did not test any bigger bullets as I feel that those tested would be represent the best potential with the powder. 60, 63, 64, 65 grain bullets and then the larger match bullets did not give what I considered useful velocity when I have shot them before with Blue Dot, in respect to their field design uses.
My personal most often used Blue Dot/223 loads are...
14.5 grains with a 40, to 46 grain bullet
14 grains with a 50 grain bullet ( Speer TNT highly recommended)
13.5 grains with a 55 grain bullet.. ( don't use SPSX Hornady's in a rifle with a one in 9 twist as this may vaporize it coming out the barrel, the SPSX is too fragile for one in 9 twists, except at pretty low velocities..
It takes a lot to overheat your barrel, it reduces recoil substantially ( it won't cycle ARs!).. it will also greatly reduce vibration down synthetic stocks, which medical studies are indictating a cause of hearing loss in high volume shooters....
HERE'S THE BLUE DOT POST.....READ ON
Now to address this topic...on 223 gopher loads...with Blue Dot..
This info ought to keep you busy, but you need to load one at a time if you are loading the slower velocity loads, so that you do not double charge your load...all of these loads have proven safe in my 223s,
Blue Dot Range Report: 223 Caliber ( Full )
Bullet Weights Tested:
1. 35 grain Hornady V Max
2. 40 grain Hornady Vmax
3. 45 grain Sierra SP
4. 50 grain Sierra SMP
5. 52 grain Sierra Boat Tail Match
6. 55 grain Winchester FMJ
Rifle Used: Ruger 77 Mk 2, VT 26 inch Barrel, Stainless Steel First yr Model
Case: Lake City Surplus, previously fired
Primer: Remington 6 ½
Powder: Blue Dot
Charge Weight Tested: 4 grains to 14 grains.
Weather: Sunny, NO clouds, 80 degrees, NO wind,
Altitude: 2000 ft
Humidity: Very Low
Field Results:
35 grain Hornady V Max:
4 grs: 1284 fps
5 grs: 1488 fps
6 grs: 1862 fps
7 grs: 2163 fps
8 grs: 2392 fps
9 grs: 2636 fps
10 grs: 2722 fps
11 grs: 3076 fps
12 grs: 3205 fps
13 grs: NO Reading
14 grs: 3518 fps
15 grs: NO Reading, Too hot, Extractor Marks, Scrapped Case
16 grs: NO Reading, Too Hot Blew Primer
Hornady 40 grain Vmax:
4 grs: 1161 fps
5 grs: 1538 fps
6 grs: 1798 fps
7 grs: 2148 fps
8 grs: 2243 fps
9 grs: 2539 fps
10 grs: 2771 fps
11 grs: 2956 fps
12 grs: 3013 fps
13 grs: 3218 fps
14 grs: 3375 fps
Sierra 45 grain SP
4 grs: 1239 fps
5 grs: 1447 fps
6 grs: 1688 fps
7 grs: 1880 fps
8 grs: 2118 fps
9 grs: 2363 fps
10 grs: 2553 fps
11 grs: 2811 fps
12 grs: 2875 fps
13 grs: 3008 fps
14 grs: 3164 fps
Sierra 50 grains SMP
4 grs: 1064 fps
5 grs: 1345 fps
6 grs: 1624 fps
7 grs: 1788 fps
8 grs: 2033 fps
9 grs: 2257 fps
10 grs: 2466 fps
11 grs: 2655 fps
12 grs: 2779 fps
13 grs: 2882 fps
14 grs: 3038 fps
Sierra 52 grain Boattail Hollow Point Match
4 grs: 1061 fps
5grs: 1460 fps
6 grs: 1632 fps
7 grs: 1916 fps
8 grs: 2142 fps
9 grs: 2225 fps
10 gr: NO Reading
11 grs: 2673 fps
12 grs: 2782 fps
13 grs: 2879 fps
14 grs: 3012 fps
Winchester 55 grain FMJ
4 grs: 896 fps
5 grs: 1264 fps
6 grs: 1568 fps
7 grs: 1825 fps
8 grs: 1994 fps
9 grs: 2201 fps
10 grs: 2328 fps
11 grs: 2453 fps
12 grs: 2677 fps
13 grs: 2821 fps
14 grs: 2915 fps
Notes:
1. IN the evaluation of the 223, I came further to the conclusion of the versatility of the 223 in the use of training new shooters, and for a very versatile varmint caliber.
2. Essentially the 223 can be loaded to the specs of a 22 Long rifle, a 218 Bee, a 221 Fireball, a 222 Remington, a 22 Hornet, and a 22 Win Mag., while allowing the shooter to be able to pick the type of bullet that he prefers.
3. Bullets were limited to use of 35 grains to 55 grains. Heavier bullets will not serve any purpose unless a 223 is to be used for deer hunting. I do not believe that their would be a significant difference in the use of a 55 grain bullet vs a 60 grain bullet.
4. The recoil on the lighter loads using 4 to 6 grains of powder had minimal recoil if any at all. These would be ideal for young shooters being trained.
5. Noise level on the lighter loads ( 4 to 6 grains) were on par with a rim fire. An increase in noise level was very noticeable above 7 grains, but still very acceptable. ( No sounding like a rim fire any more)
Noted Observations:
1. It was noted but not considered part of the testing, with a tree used as a back stop for some of the testing, that all bullets ( 45 to 55 grains)penetrated thru the tree at a distance of 20 yds.
2. The diameter of the tree was measured at 5 inches.
3. The 40 grain Vmax loads failed to penetrate the tree at loads above 10 grs, above 2771 fps. However at 10 grains and less, the bullets penetrated thru the tree and did a large amount of damage ( like turning the wood into tooth picks) on the exit side of the tree. The penetration stopped at the 5 grain load.
Some of the Author’s Conclusions:
1. I learned some significant items beyond the versatility of the 223 with the bullets tested, but focusing on its use in the field, got some ideas.
2. A light rifle such as a Winchester Featherweight or Rugers Compact model with a 16.5 inch barrel or the Ultra Light with a 20 inch barrel would make a good combo with the use of Blue Dot.
3. Since the powder is burned cleanly in the first 10 to 12 inches of barrel, the shorter barrels are not handicappiing velocity in the lighter shorter rifles.
4. The penetration of the 40 grain Vmax into the tree did make me ponder the use of those plastic tip varmint rounds as potential loads for small deer for youth shooters. Just like my observations in the larger calibers, the plastic tipped bullet seem to do a lot more damage, at velocities under 2700 fps. The Vmax surprised me. This is a decision any shooter will have to test on his own and make their own decisions. I am just passing on that I saw potential merit in the application.
5. Although one has to weigh out the potential of Plastic Tipped Varmint bullets on bigger game like deer and antelope, some of these loads in real life use, utilizing Barnes’s X bullets in 22 caliber I can recommend. They make a 45 grain, 50 grain and 53 grain bullet. The way I saw much better penetration and more damage in wood, at the lower range velocities, 2200 to 2700 fps, this would make a good deer load in many parts of the USA, and recoil is minimal.
I did not test any bigger bullets as I feel that those tested would be represent the best potential with the powder. 60, 63, 64, 65 grain bullets and then the larger match bullets did not give what I considered useful velocity when I have shot them before with Blue Dot, in respect to their field design uses.
My personal most often used Blue Dot/223 loads are...
14.5 grains with a 40, to 46 grain bullet
14 grains with a 50 grain bullet ( Speer TNT highly recommended)
13.5 grains with a 55 grain bullet.. ( don't use SPSX Hornady's in a rifle with a one in 9 twist as this may vaporize it coming out the barrel, the SPSX is too fragile for one in 9 twists, except at pretty low velocities..
It takes a lot to overheat your barrel, it reduces recoil substantially ( it won't cycle ARs!).. it will also greatly reduce vibration down synthetic stocks, which medical studies are indictating a cause of hearing loss in high volume shooters....
Pochanaquarhip
- Joined
- Dec 18, 2023
- Messages
- 1,857
- Reaction score
- 5,596
- Trophy Points
- 113
Member
Fren
Now those are cool as shit! I can’t wait to get one for my son, do they make boy colors in the laminate?
I’ll have to get a pink one like that for my daughter when she’s old enough!
The one I bought my son was a plain brown stock. Those little rifles are stoopit accurate. I think I liked shooting it more than he did.
Check Boyds stocks. I did one for my sons 10/22. Adjustable combo and length of pull. Locks up tight.
